6th-Gen HD Thermal Core
1280×1024 or 640×480, 12 µm, ~20–30 mK NETD at 60 Hz on a 1920×1200 OLED display.
Thermal Imaging · Tactical Weapon Sight

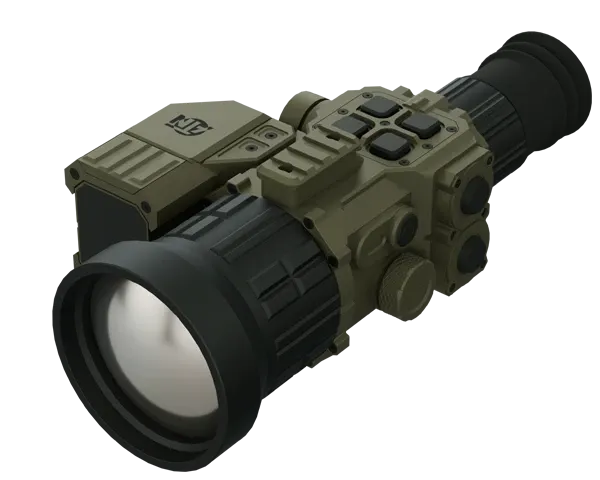

TTWS-6
SKU · TTWS-6 · 6th-Gen Thermal Core
A next-generation thermal weapon sight on ATN's 6th-Generation core — precise target engagement with real-time ballistic fire control, an augmented-reality combat overlay, an integrated laser rangefinder, and network-centric target data exchange. Day or night.
640x480 1280x1024Detector
60 HzFrame Rate
8 kmLaser Rangefinder
1920×1200OLED Display
Highlights
A fully integrated combat sight — thermal optics, intelligent fire control and network interoperability in one weapon-mounted system.
- 1280×1024 · 640×480
- OLED 1920×1200
- Ballistic Calc
- AR Overlay
- LRF 8 km
- WiFi · BT
Fire Control & Ballistics
On-board ballistic calculator, range estimation and target tracking put the firing solution in the sight picture.
Augmented-Reality Overlay
Targeting cues, range/ballistic data and shared battlefield data overlaid on the operator's view.
Target Data Exchange
Share target and point-of-interest data with other devices for coordinated engagement; 1535 nm LRF to 8 km.
Combat System
Intelligent targeting and interoperability built into the sight.
Ballistic Calculator + Profiles
Real-time firing solutions with multiple stored ballistic profiles.
Recoil-Activated Video
Automatically captures the shot for after-action review.
Hot-Point Tracking & Targeting
Memorize and track targets; lock hot points in the scene.
Augmented Reality
Mission data, targeting cues and status overlaid on the view.
Networked Interoperability
WiFi + Bluetooth (2.4/5 GHz) and USB-C; target data exchange with other devices.
GPS + IMU Awareness
GPS, digital compass, 3-axis accelerometer and gyroscope for heading and orientation widgets.

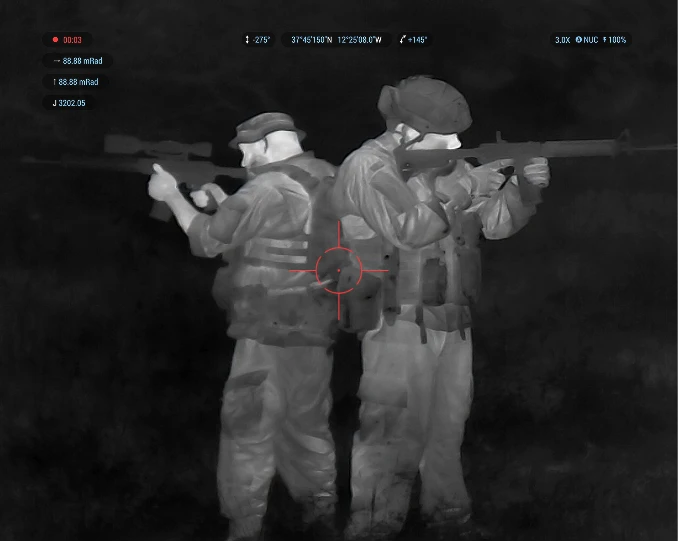

Combat Overlay
Mission-critical data, right in the sight picture.
Targeting Cues
Range & Ballistics
Heading & GPS
Shared Battlefield DataFull Specifications
Complete technical data, smart features, and connectivity.
| Sensor type | Uncooled microbolometer |
|---|---|
| Detector resolution | 640×480 or 1280×1024 |
| Pixel pitch | 12 µm |
| Sensitivity (NETD) | 20 mK (640) · 30 mK (1280) |
| Frame rate | 60 Hz |
| Objective lens | 50 mm F1.0 · 75 mm F1.0 · 100 mm F1.2 |
| Field of view (H×V) | 17.5°×14° (1280·50 mm) … 5.9°×4.4° (640·75 mm) |
| Display | OLED · 1920×1200 |
| Exit pupil / eye relief | 6 mm · >55 mm |
| Diopter adjustment | −6 … +4 |
| Digital zoom | 2× · 4× · 8× |
| Laser rangefinder | 1535 nm · to 8 km · ±1 m (Class 1) |
| Laser pointer | 850 nm · Class 1 eye-safe |
| Sensors | Compass · 3-axis accel · gyroscope · GPS |
| Recording | 1920×1200 / 640×480 · .mp4 / .jpeg |
| Storage | 64 GB |
| Connectivity | WiFi & Bluetooth (2.4/5 GHz) · USB Type-C |
| Mount | Picatinny (+ top rail for red dot) |
| Power | 2× 18650 · external 5 V USB-C |
| Endurance | 6–8 h (room temp.) |
| Body | Magnesium alloy |
| Environmental | IP67 / MIL-STD-810H |
| Operating temp. | −46 … +49 °C |
| Dimensions | 205×135×88 … 267×138×92 mm |
| Weight | < 1.6 kg |
Built For
A networked thermal weapon sight for precision engagement across mission profiles.
Designated Marksman / Sniper
Precision fire at range
Assault & CQB
Fast close-quarters engagement
Networked Fire Support
Coordinated, data-linked fires
Export-Controlled · Government Channel
Spec It to Your Mission
The TTWS-6 is export-controlled under ITAR/EAR and available through government and authorized defense channels only. Optics, fire-control profiles and connectivity are configured per order — request a quote or a capability briefing on the TTWS-6.
Request a Quote →Related Products
More from the AAD thermal and day/night optics lineup.
Frequently Asked Questions
What resolution does the TTWS-6 sensor support?
1280×1024 or 640×480 at 12 µm pixel pitch, roughly 20–30 mK NETD at 60 Hz, viewed on a 1920×1200 OLED display.
Does the TTWS-6 have a ballistic calculator?
Yes — an on-board ballistic calculator with range estimation and target tracking puts the firing solution in the sight picture, plus multiple stored ballistic profiles.
What's the laser rangefinder range on the TTWS-6?
An integrated 1535 nm laser rangefinder reaches up to 8 km at ±1 m (Class 1 eye-safe).
Is the TTWS-6 export-controlled?
Yes — the TTWS-6 is export-controlled under ITAR/EAR and available through government and authorized defense channels only, with optics, fire-control profiles and connectivity configured per order.
