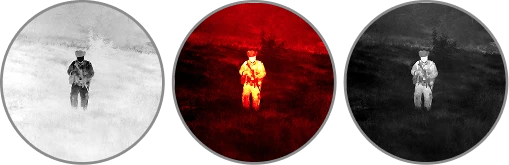

12-Micron 640×480 Core
An advanced focal-plane array and thermal processor deliver industry-leading image sharpness.
Thermal Imaging · Multi-Mission Sight

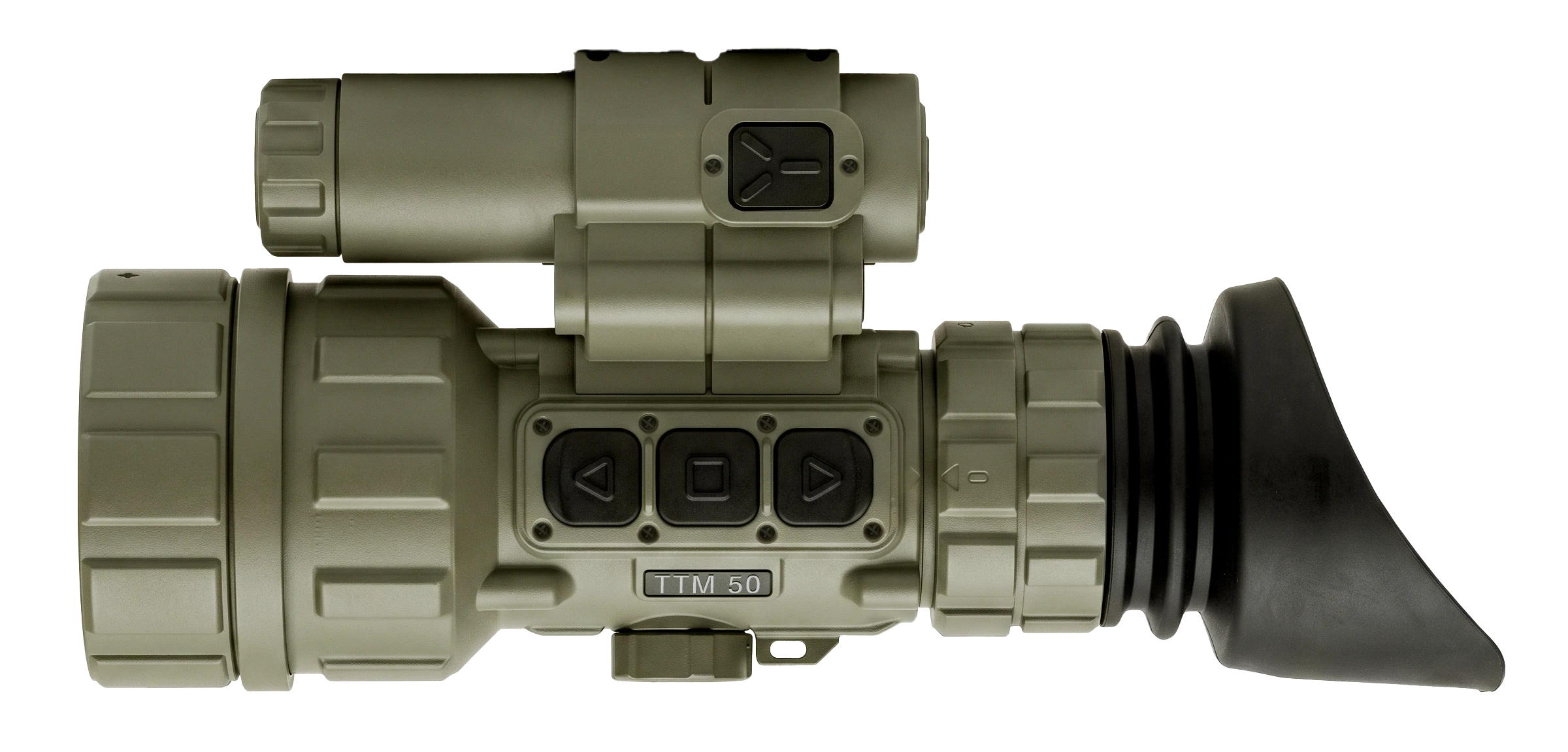

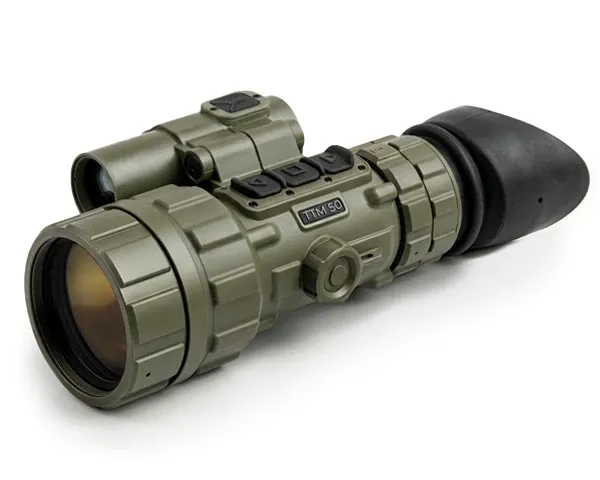

TTM-50
SKU · TTM 50 · TTM-50 LRF — with rangefinder
A compact multi-mission thermal sight with a 50 mm objective for extra reach — clip-on, stand-alone riflescope, handheld viewer, or helmet-mounted. A 12-micron 640×480 core, a flip-to-side QD mount that holds zero, and an integrated IR laser pointer. Available ultra-compact or with a 1,000-yard LRF.
640×480Resolution
12 µmPixel Pitch
<25 mKNETD
≤490 gWeight
Highlights
A 50 mm multi-mission thermal sight — more reach than the compact TTM family, one optic for four roles.
- 640×480 · 12 µm
- <25 mK NETD
- 50 mm F1.0
- FOV 8.78°×6.59°
- Optional LRF 1000 yd
- IP67
50 mm Objective — More Reach
A 50 mm F1.0 lens extends detection and recognition range beyond the compact TTM models.
Flip-to-Side QD Mount
Transition between day optics and thermal while holding zero; NVG shoe, Picatinny and helmet mounts.
IR Laser Pointer
An 850 nm Class 1 eye-safe pointer marks targets invisible to image-intensified night vision.
Features
One thermal sight, four roles — engineered for adaptability in the field.
Clip-On or Stand-Alone
Runs ahead of a day optic or as a stand-alone thermal riflescope.

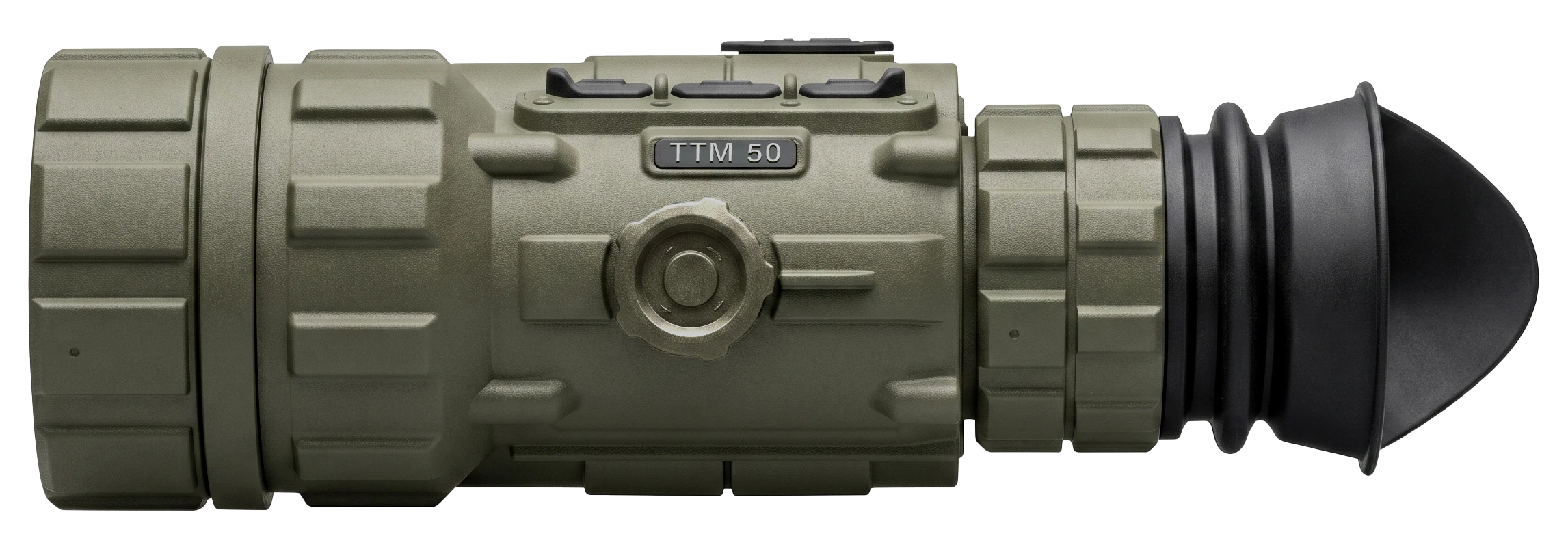

Handheld & Helmet
Compact enough for a handheld viewer or hands-free helmet mount.
Ballistic Calculator (LRF)
On-board ballistics on the LRF model put the firing solution in view.
1,000-yard LRF (optional)
Optional built-in laser rangefinder on the TTM-50 LRF.
Recoil-Grade Zero-Hold
Flip-to-side QD keeps zero through remount; rugged for weapon use.
IR Laser Pointer
850 nm Class 1 eye-safe target designation for the team.
Modes of Operation
One optic, four ways to deploy.
Clip-On
Weapon Sight
Monocular
Helmet-MountedFull Specifications
Complete technical data, smart features, and connectivity.
| Modes of operation | Clip-on · weapon sight · monocular · helmet |
|---|---|
| Thermal sensor | 12-micron · 640×480 |
| Sensitivity (NETD) | <25 mK |
| Objective lens | 50 mm · F1.0 |
| Focus range | 0.25 m – ∞ |
| Magnification | 1× |
| Field of view | 8.78° × 6.59° |
| Diopter adjustment | −3 … +3 dpt |
| Exit pupil | 20 mm |
| Eye relief | Unlimited |
| Laser rangefinder | 1000 y/m (LRF model) |
| Ballistic calculator | Yes (LRF model) |
| IR laser pointer | 850 nm · Class 1 eye-safe |
| Recording | Video & photo to internal memory (64 GB) |
| Additional sensors | Compass · accelerometer · gyroscope |
| Power | 1× CR123 or 1× 18650 (rechargeable) |
| Battery life | <3 h (CR123) · 7+ h (18650) |
| Mount | NVG flip-to-side shoe · Picatinny · helmet |
| IP rating | IP67 |
| Dimensions | 90 × 65 × 140 mm |
| Weight | ≤ 490 g |
| Compliance | MIL-STD-810 · MIL-STD-461 (EMC) |
Built For
One thermal optic across sighting, marksmanship, and reconnaissance roles.
Clip-On Sighting
Ahead of a day optic, zero held
Designated Marksman
Mid-range precision engagement
Recon — Handheld & Helmet
Hands-free thermal observation
Export-Controlled · Government Channel
Spec It to Your Mission
Sales of the TTM-50 are subject to ITAR/EAR export controls and restricted to authorized government and defense buyers. Request a quote or a capability briefing on the TTM-50.
Request a Quote →Related Products

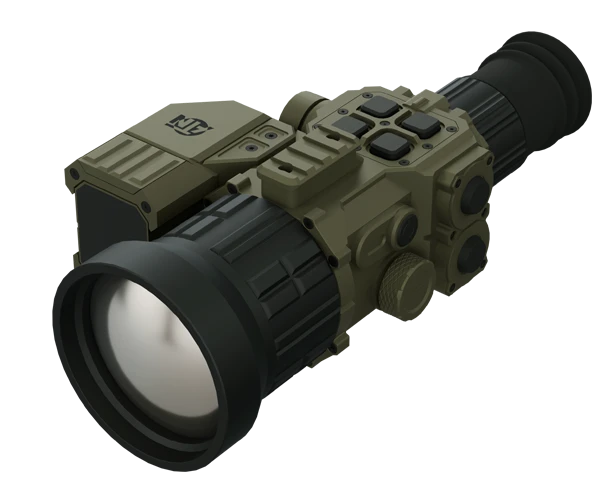

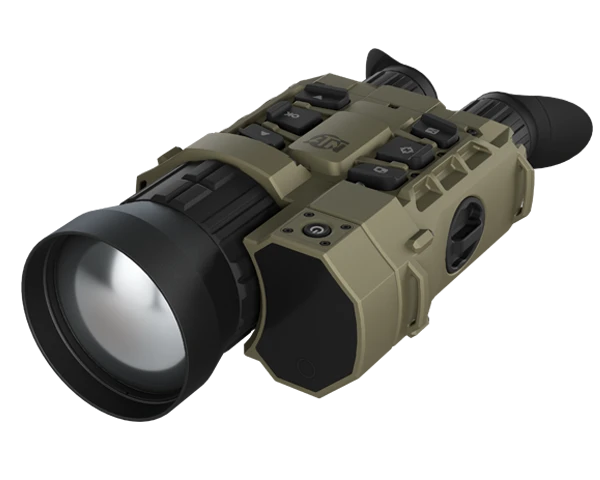

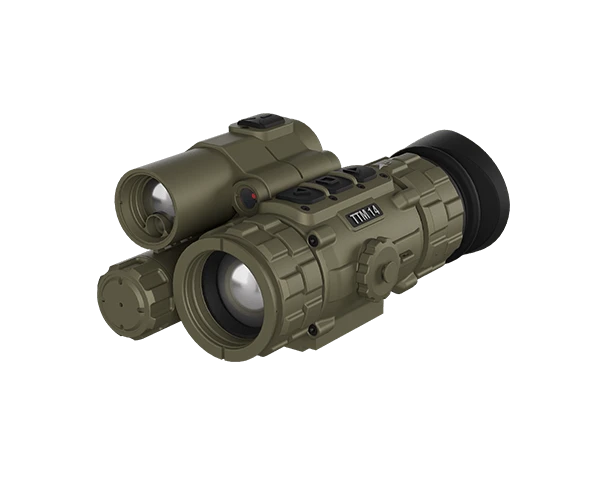

More from the AAD thermal optics lineup.
Frequently Asked Questions
What objective lens does the TTM-50 use?
A 50 mm F1.0 objective — larger than the TTM-18's 25 mm lens — extending detection and recognition range beyond the compact TTM models.
Does the TTM-50 have a ballistic calculator?
Yes, on the LRF model — the on-board ballistic calculator, paired with the 1,000-yard laser rangefinder, puts the firing solution in view.
What mounts does the TTM-50 support?
A flip-to-side QD mount — NVG shoe, Picatinny, and helmet mounts — that holds zero when transitioning between day optics and thermal.
Is the TTM-50 export-controlled?
Sales of the TTM-50 are subject to ITAR/EAR export controls and restricted to authorized government and defense buyers — request a quote or a capability briefing.
