6th-Gen HD Thermal Core
1280×1024 or 640×480, 12 µm, <25 mK NETD at 60 Hz — industry-leading fidelity and target recognition.
Thermal Imaging · Tactical Binocular

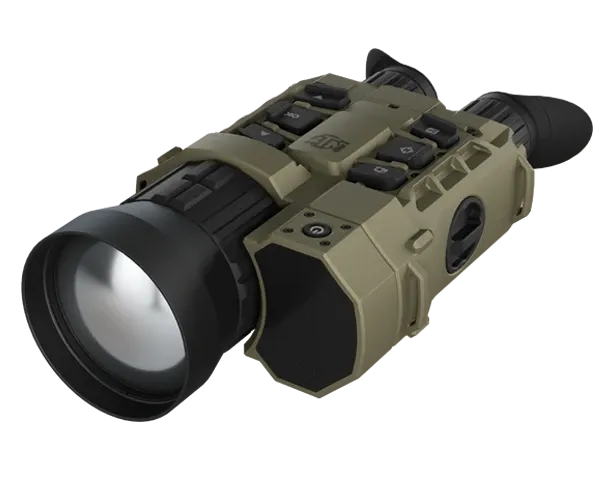

TTBN-6
SKU · TTBN-6 · 6th-Gen Thermal Core
A next-generation multi-mission thermal binocular on ATN's 6th-Generation core with SharpIR™ AI enhancement — long-range detection, high-definition thermal imaging, and an integrated laser rangefinder for surveillance, reconnaissance and target acquisition, day or night.
640x480 1280x1024Detector
<25 mKNETD
4700 mDetection (100 mm)
8 kmLaser Rangefinder
Highlights
A 6th-generation thermal binocular built as a force multiplier for surveillance, reconnaissance and target acquisition.
- 1280×1024 · 640×480
- <25 mK
- 50/75/100 mm
- Detection 4700 m
- LRF 8 km
- SharpIR™
SharpIR™ AI Enhancement
Real-time AI image enhancement and Hot-Point Tracking for faster detection in any conditions.
Long-Range Rangefinder
1535 nm LRF ranges NATO-standard targets past 5000 m (to 8 km); 905 nm option to 3000 m.
IR Laser Pointer
850 nm Class 1 eye-safe pointer designates thermally camouflaged targets for teammates on I² NVGs.
Features
6th-generation thermal built for the battlefield.
HD 6th-Gen Core
State-of-the-art FPA and custom thermal processor for precise recognition in all conditions.
SharpIR™ + Hot-Point Tracking
AI enhancement and automatic hot-point tracking sharpen and lock detected targets.

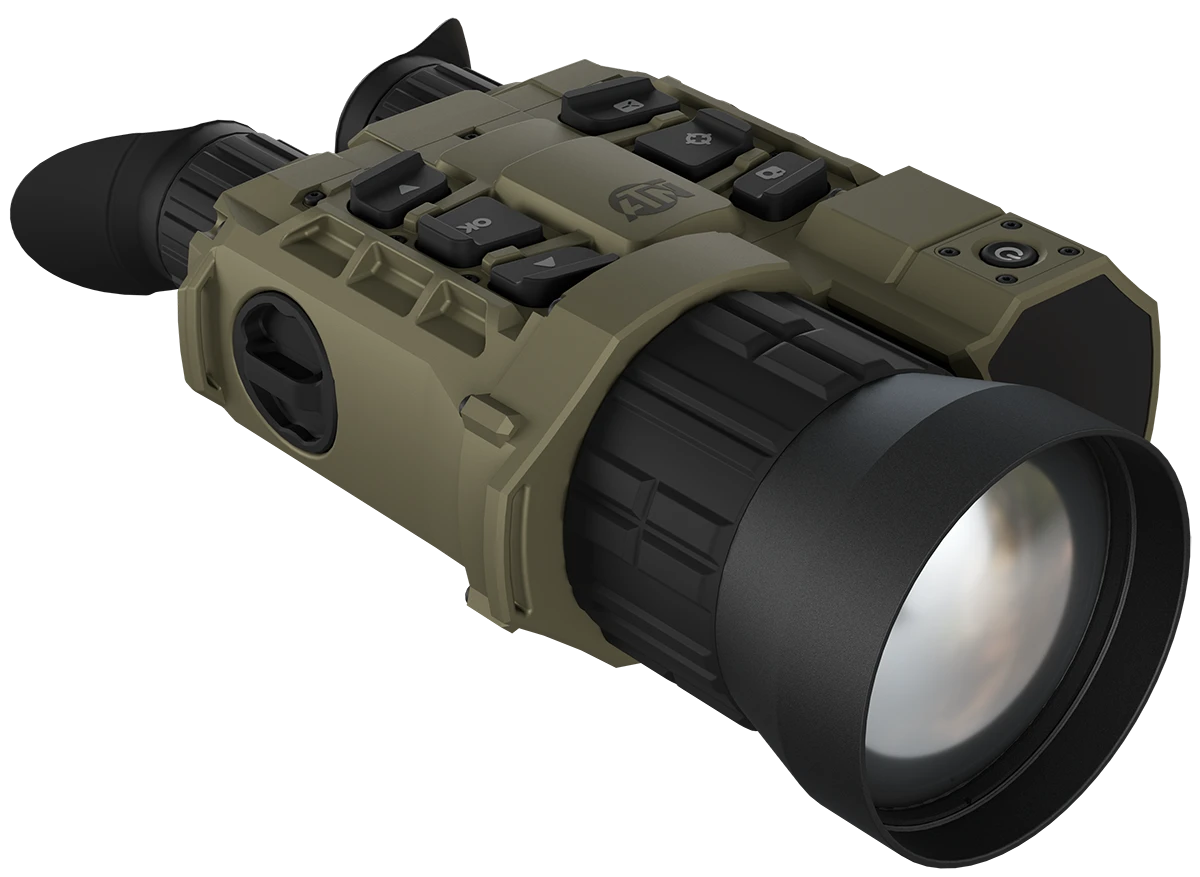

Interchangeable Optics
50 mm, 75 mm or 100 mm Germanium optics; 2×/4×/8× digital zoom.
Dual-Option LRF
Long-range 1535 nm (8 km) or cost-effective 905 nm (3 km) laser rangefinder.

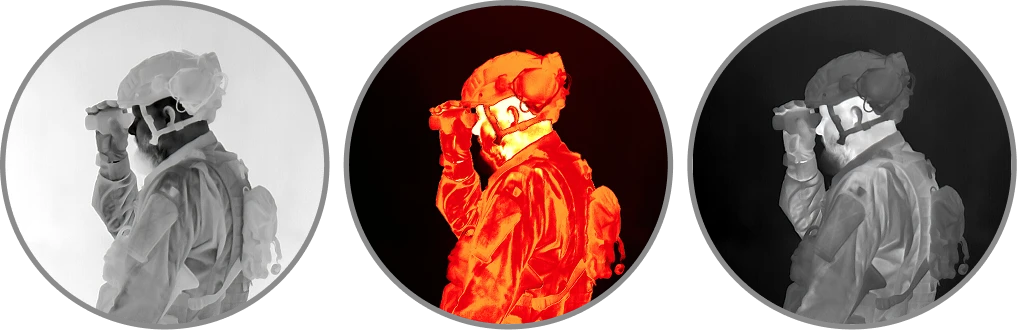

10 Color Palettes + NUC
White/black-hot, contour, sepia and more; auto/manual/quiet/stealth NUC.
Rugged & Tripod-Ready
IP67 / MIL-STD-810G impact-resistant housing, gloved controls, tripod compatible.
Deploy It Your Way
Handheld or in a fixed overwatch position.

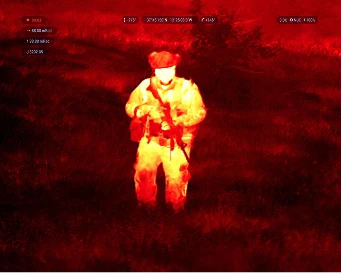

Handheld
Tripod / OverwatchFull Specifications
Complete technical data, smart features, and connectivity.
| Thermal sensor | 12 µm · uncooled |
|---|---|
| Detector resolution | 640×480 or 1280×1024 |
| Refresh rate | 60 Hz |
| Sensitivity (NETD) | <25 mK |
| Objective lens | 50 mm F1.0 · 75 mm F1.0 · 100 mm F1.2 |
| Digital zoom | 2× · 4× · 8× |
| Field of view (H×V) | 17.5°×14° (1280·50 mm) … 4.4°×3.3° (640·100 mm) |
| Detection range | 2500 m (50 mm) · 3800 m (75 mm) · 4700 m (100 mm) |
| Diopter adjustment | −6 … +2 |
| Laser rangefinder | 8000 m (1550 nm) or 3000 m (905 nm) |
| Laser pointer | 850 nm · Class 1 eye-safe |
| Imaging | SharpIR© · Hot-Point Tracking · NUC (auto/manual/quiet/stealth) |
| Recording | Video/audio · photo · video out |
| Storage | 64 GB · USB Type-C |
| Power | 2× CR123 or 2× 18650 (rechargeable) · external power |
| Battery life | 10 h (640) · 8 h (1280) on 2× 18650 |
| Environmental | IP67 / MIL-STD-810G |
| Operating temp. | −32 … +55 °C |
| Dimensions | 240 × 130 × 83 mm |
| Weight | ≤ 1.45 kg (w/o battery) |
Built For
A multi-mission thermal binocular for reconnaissance, target acquisition, and overwatch.
Reconnaissance & Surveillance
Persistent day/night observation
Target Acquisition
Detect, range & designate

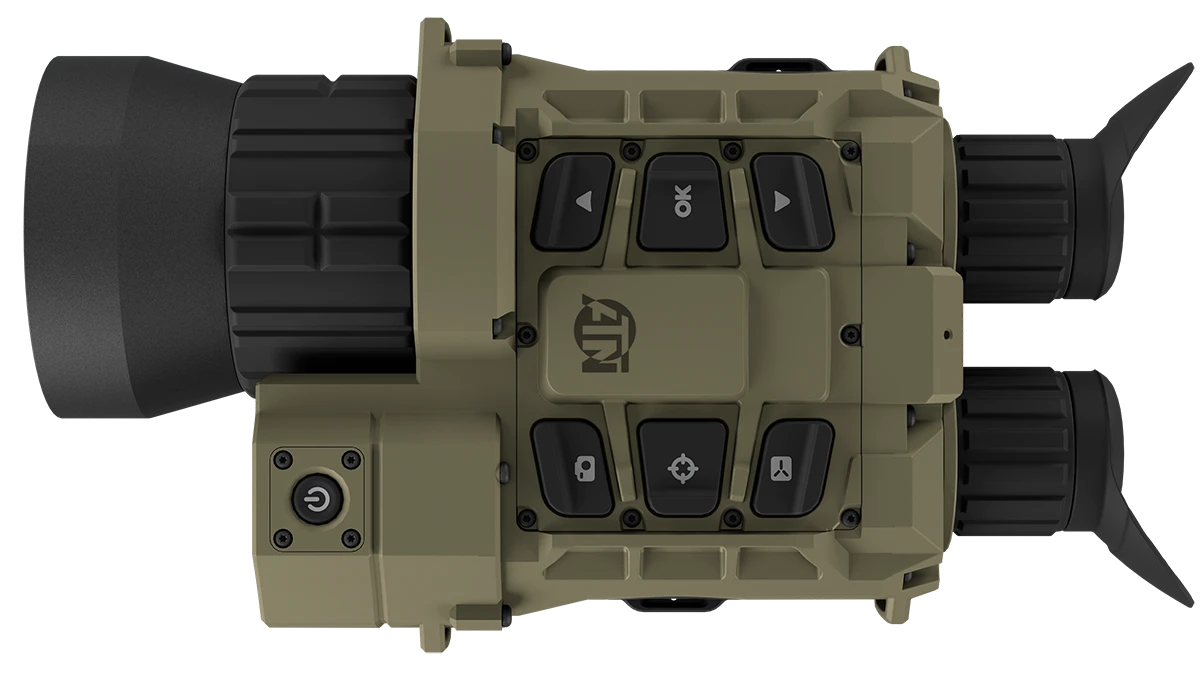

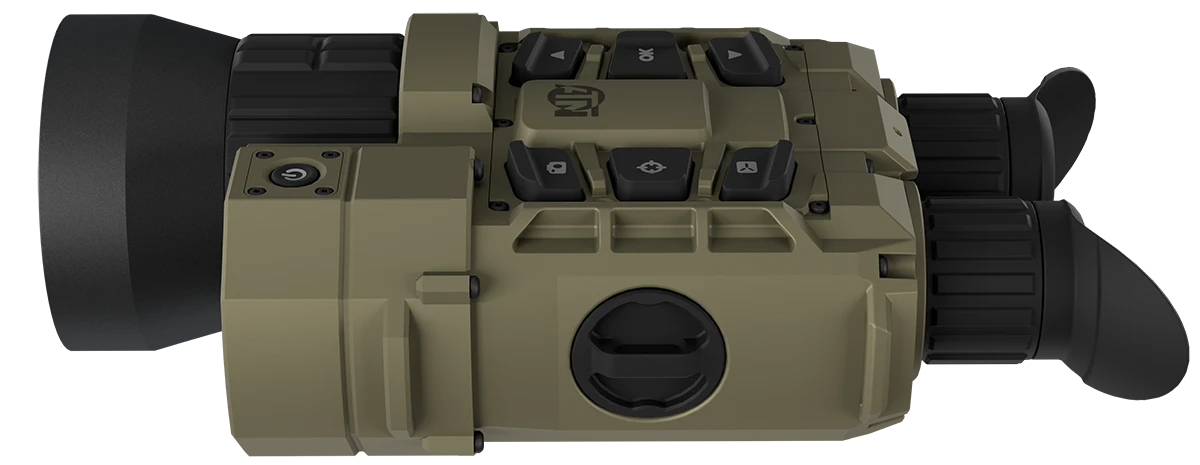

Overwatch & Fixed Observation
Tripod-mounted long dwell
Export-Controlled · Government Channel
Spec It to Your Mission
Optics, rangefinder and imaging options for the TTBN-6 are configured per order. This item may be ITAR/EAR-controlled and is sold to authorized buyers only — request a quote or a capability briefing through our government channel.
Request a Quote →Related Products
More from the AAD thermal, night-vision, and digital lineup.
Frequently Asked Questions
What is SharpIR on the TTBN-6?
SharpIR™ is real-time AI image enhancement paired with Hot-Point Tracking, sharpening and automatically locking onto detected targets in the thermal view.
What laser rangefinder options does the TTBN-6 offer?
A long-range 1535 nm LRF reaching 8 km, or a cost-effective 905 nm option to 3 km — the 1535 nm option ranges NATO-standard targets past 5000 m.
Can the TTBN-6's optics be swapped?
Yes — it takes interchangeable 50 mm, 75 mm, or 100 mm Germanium lenses on the same core, plus 2×/4×/8× digital zoom.
Is the TTBN-6 export-controlled?
Optics, rangefinder and imaging options are configured per order, and the TTBN-6 may be ITAR/EAR-controlled and sold to authorized buyers only through the government channel.
