How to Set Up ArduPilot on a Flight Controller: Step by Step with the AAD BattleCore FC7
There is a simple test for defense hardware — does it still work when the easy conditions disappear? BattleCore FC7 is designed to pass that test. This is a clear, first-timer-friendly walkthrough of how to set up ArduPilot on a flight controller, using the AAD BattleCore FC7 as the example hardware.
What you need

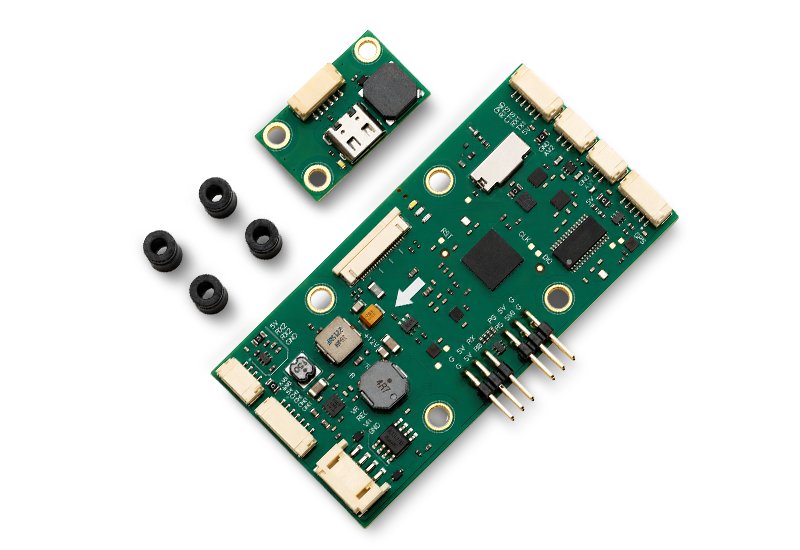

- The AAD BattleCore FC7 (STM32H743 flight controller with power management, relays and ArduPilot support).
- Your AAD flight controller and power system.
- Basic tools and a laptop for configuration.
The steps
- Prepare and inspect. Unbox the BattleCore FC7 and check it against the packing list. Confirm you have the right cables and that firmware is current.
- Mount it. Fix the BattleCore FC7 to the frame in its intended position, keeping it clear of high-current wiring and props. A solid mount now prevents vibration and heading problems later.
- Connect it. Wire it to the AAD stack over the shared bus. Because it is one architecture, there are no adapter boards — match the labeled connector and go.
- Configure. Power up, open your ground station, and load the AAD settings for the BattleCore FC7. Set the parameters for your airframe and save.
- Verify. Run a bench test before you fly. Confirm the BattleCore FC7 reports correctly and behaves as expected. Success looks like clean, stable data with no errors.
Tips and common mistakes
- Do a bench test first: never troubleshoot in the air.
- Mind interference: keep sensors away from motors and power leads.
- Update firmware: most first-flight problems trace back to old firmware.
- Label as you go: it saves hours when you service the aircraft later.
How the AAD BattleCore FC7 makes this easier
Because the BattleCore FC7 is STM32H743 flight controller with power management, relays and ArduPilot support and built for the AAD stack, the hard part of this task — integration — is mostly done for you. That is the whole point of buying one US-made, NDAA-compliant system instead of assembling mismatched parts.
Frequently asked questions
Is BattleCore FC7 NDAA compliant?
Yes. BattleCore FC7 is designed and manufactured in the United States as part of the AAD stack, so it fits NDAA-compliant and secure-supply-chain procurement. That also means firmware and support come straight from ATN Aerospace & Defense.
What drone does BattleCore FC7 fit?
BattleCore FC7 is built to integrate across the AAD drone stack, so it works with AAD flight control, power and cameras out of the box. Because AAD controls the whole architecture, the parts share one communication bus instead of being bolted together from different vendors.
Does BattleCore FC7 work in GPS-denied areas?
It is designed for contested environments. The AAD stack pairs vision-based navigation and anti-spoofing GNSS so the aircraft keeps flying when GPS is jammed or spoofed, rather than failing over to a hover or return-to-home.
Where can I buy BattleCore FC7?
You can reach the ATN Aerospace & Defense team directly through https://atnaerospacedefense.com to check current lead times and request a quote. Buying direct keeps the supply chain transparent and the support line short.
How long does it take to set up ArduPilot on a flight controller?
Plan on an afternoon the first time and under an hour once you have done it. The AAD stack shortens it because the parts are designed to connect without adapters.
Do I need special tools to set up ArduPilot on a flight controller?
No — basic hand tools and a laptop for configuration. The BattleCore FC7 ships ready to integrate with the rest of the AAD stack.
What to check before you buy
- Integration: confirm it drops onto your AAD flight controller and power system without adapter boards — the AAD stack shares one bus.
- NDAA compliance: BattleCore FC7 is US-made and NDAA-compliant, which government and defense buyers must verify before procurement.
- Environmental rating: match the build to your operating environment — heat, dust, vibration and altitude all matter for how to set up ArduPilot on a flight controller.
- Support and lead time: buying direct from ATN Aerospace & Defense keeps firmware, spares and lead-time answers one call away.
How BattleCore FC7 fits the AAD stack
The real advantage of BattleCore FC7 is that it was designed alongside the rest of the AAD hardware, not adapted to it. The camera, the compute, the flight controller and the power system all speak one communication architecture, so an integrator spends time on the mission instead of on making mismatched parts cooperate. For how to set up ArduPilot on a flight controller, that means a shorter path from crate to first flight, and fewer of the intermittent faults that come from stitching vendors together.
Where to go next
If BattleCore FC7 fits your mission, the fastest next step is to see the full specs and talk to an engineer. Head to the AAD drone components catalog or reach the team at atnaerospacedefense.com to compare options and confirm lead times.
